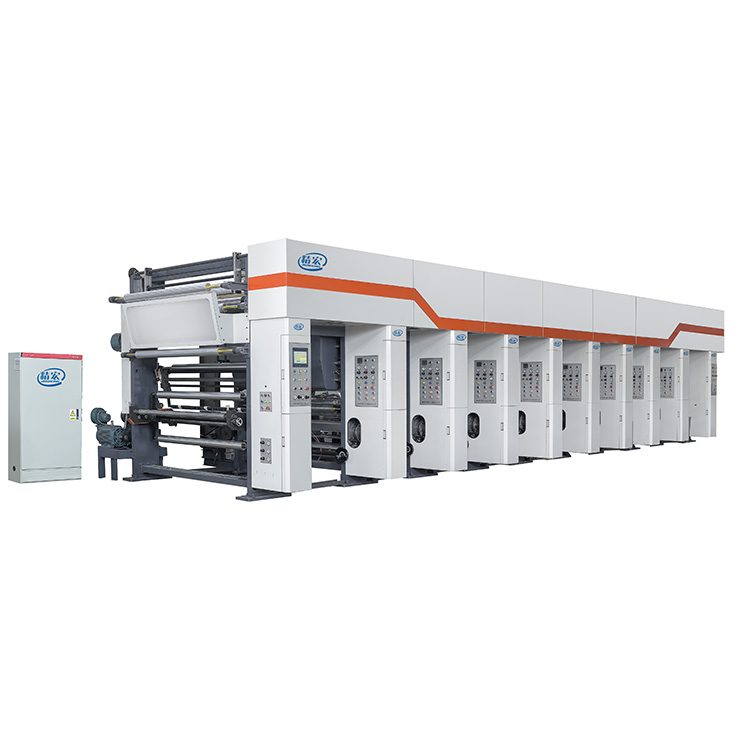

JHAY-B Three Motor Rotogravure Printing Machine

This machine is used for printing BOPP, PE, PET, PVC, paper and otherrolltype material, adopt advanced technology three machine tension control system, dynamic synchronous difference complement system tension and zero speed difference automatically change the volume action procedure of all by the central PLC control completed, HanXian touch man-machine interface to set parameters and modification; Has the secondary return air function of seal drying oven, the unique round hole array wind ceremonies hot air drying, high speed working status automatically change the volume; The high quality material, high precision processing guarantee the machine excellent rigidity and work stability, people-oriented design concept for the operator to provide sufficient convenient..

This machine is suitable for continuous ,multi-color printing or rolling material in good printing performance such as tobacco packing,paper,non woven,PP woven,aluminum foil,BOPP,PET,NYLON,PVC,PE and so on.

1. The whole set is in permutation and combination style, possible to add and reduce color class and add on reverse printing mechanism as required by customers.

2.Seven motors tension system automatic control for complete machine, steady tension control.

3. Pneumatic backpressure moving erasing knife, non-shaft pneumatic conic node printing plate loading,prompt and convenient printing plate changing.

4. Adopting control method of auto permanent tension and magnetic powder brake for unreeling.

5. Adopting pneumatic elements for control of all printing pressure roll drawing pressure roller and open & close of oven.

6. Sealed type lengthened oven, fast drying with less energy consuming, and auto constant temperature control system.

7. Printing ink circulating system, inflatable type shaft draw in and draw out.

8. High-accuracy gear transmission box, adopting patented technique.

9. Reeling and unreeling reel by tumbling dual-station mechanism, realizing material change without machine halt.

10.Adopting aluminum alloy guide roll after anode oxidation processing and in balance.

11. Full automatic computer registering devices and computer still examining graphics.

12. Diesel oil air-stove system is available for stove heating.

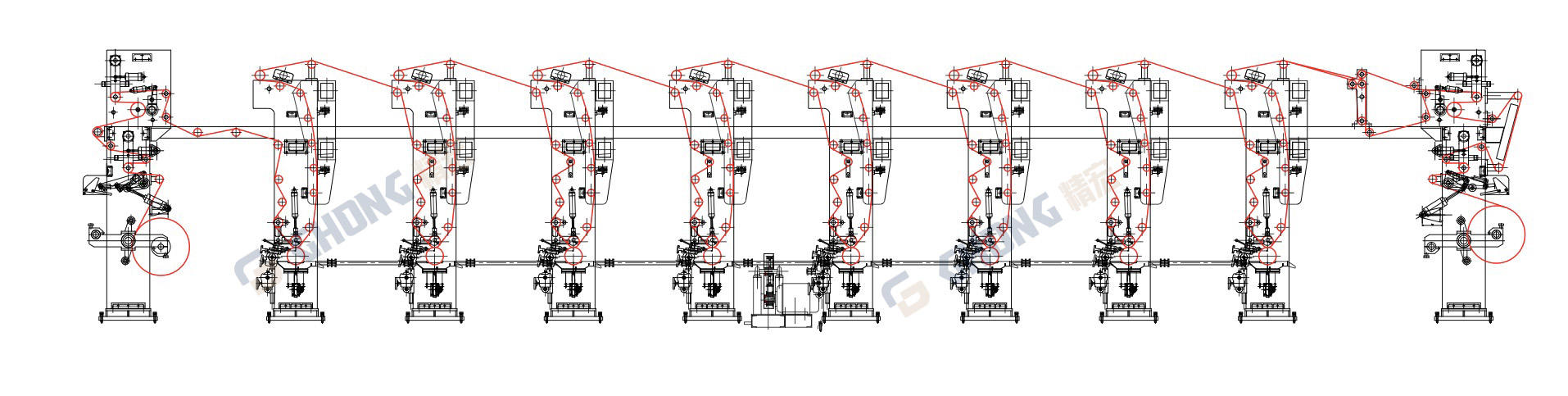

Structure chart
