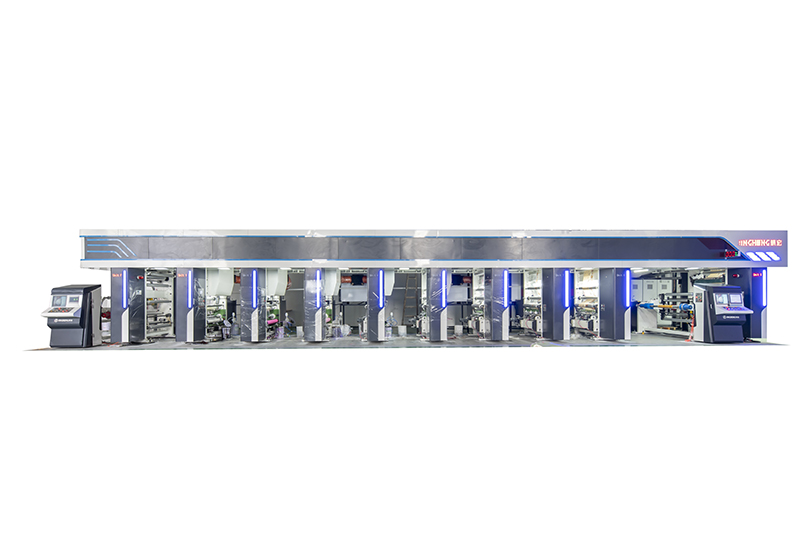

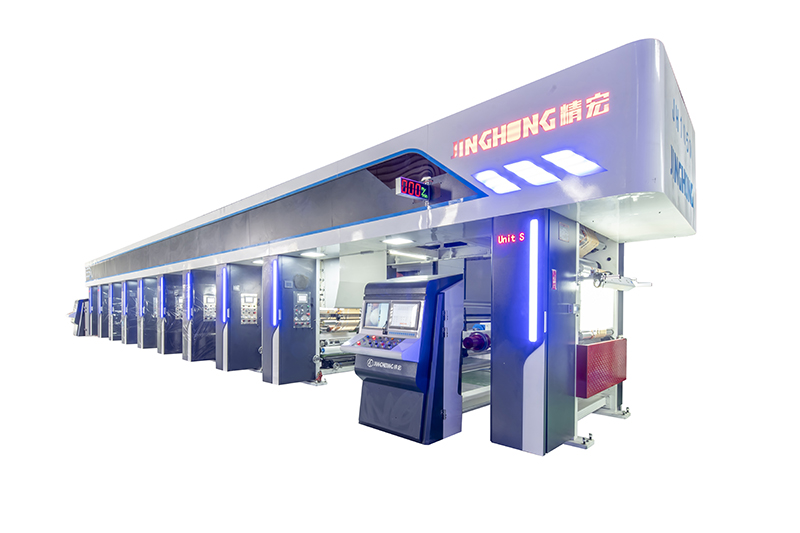

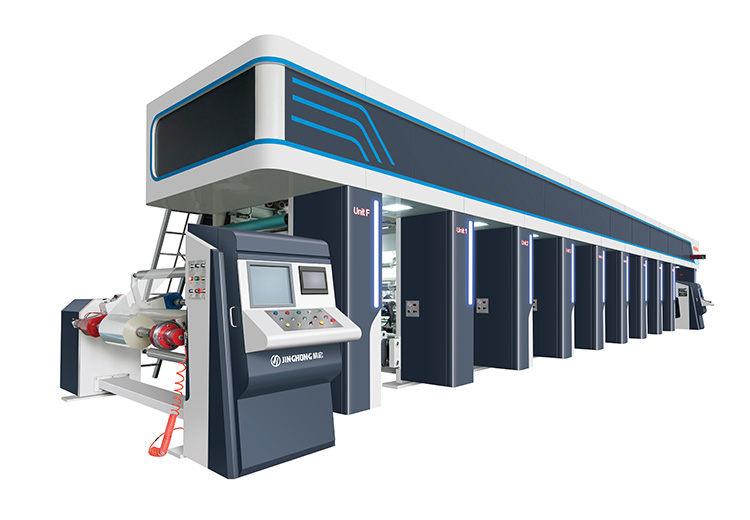

Electronic Line Shaft ELS Rotogravure Printing Machine



Electronic Line Shaft ELS Rotogravure Printing Machine

Equipment Description
JHAY-A Electronic Shaft-Driving Gravure Press has the features like low energy consumption, low loss, simple operation and intellectualization etc. Both the large-batch oversupplied products or small-batch product groups are all applied to long-term production of this printing machine. It combines flexible package order with personnel configuration status to make an optimization and improvement with respect to printing operations, enabling it to become more efficient and convenient in case of switching among different orders; Low-voltage electric and controlling system applies the internationally well-known brands e.g. Japan Yaskawa, Schneider, SMC etc., which ensures a high reliability and durability of long-term use for this printing machine.

Inquiry Contact us

Product Description

Description

JHAY-A Electronic Shaft-Driving Gravure Press has the featureslikelow energy consumption, low loss, simple operation and intellectualization etc. Both the large-batch oversupplied products or small-batch product groups are all applied to long-term production of this printing machine. It combines flexible package order with personnel configuration status to make an optimization and improvement with respect to printing operations, enabling it to become more efficient and convenient in case of switching among different orders; Low-voltage electric and controlling system applies the internationally well-known brands e.g. Japan Yaskawa, Schneider, SMC etc., which ensures a high reliability and durability of long-term use for this printing machine.

Specification:
Model	JHAY-A-650	JHAY-A-850	JHAY-A-1050	JHAY-A-1250
Printing Unit	1-10colors or as required	1-10colors or as required	1-10colors or as required	1-10colors or as required
Printing cylinder diameter	100-320mm	100-320mm	100-320mm	100-320mm
Printing width	600mm	800mm	1000mm	1200mm
Rewind &Unwind diameter	600mm	600mm	600mm	600mm
Printing speed	10-320m/min	10-320m/min	10-320m/min	10-320m/min
Register accuracy	≤0.05mm	≤0.05mm	≤0.05mm	≤0.05mm
Dry form	electric steam thermal oil heating	electric steam thermal oil heating	electric steam thermal oil heating	electric steam thermal oil heating
Total power	288kw	292kw	298kw	302kw
Weight	40000kg	42000kg	44000kg	46000kg
Dimension	1850031503280mm	1850033503280mm	1850035503280mm	1850037503280mm
Material	BOPP, PET, CPP, Nylon, PVC shrink, PE, PET
Application	PE bag,shrink label,snack bags,yogurt cup,Medicine,candy wrapper,drinks
Suitable Industry	Flexible packaging industry (food packaging company,pharmaceutical company) Shrink sleeve industry (decoration bottles,cans,glassed) Optical-electronics industry （computer related 3C products and packaging) Transfer products (house architecture,car)
