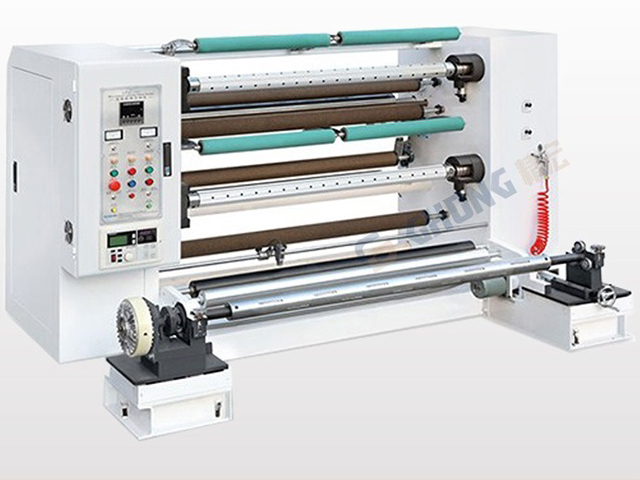

Computer control automatic vertical slitting machine JHFQ-MDS

This machine is used to cut all kinds of roll materials BOPP, PET, PE, CPP, PVC, Aluminum Foil, Paper and so on.

Inquiry Contact us

Product Description

MODEL	JHFQ-MDS-700	JHFQ-MDS-1100	JHFQ-MDS-1300
Width of raw material	700mm	1100mm	1300mm
Max Diameter of unwinding	600mm	600mm	600mm
Max Diameter of rewinding	400mm	400mm	400mm
Slitting and rewinding width	20-700mm	20-700mm	20-700mm
Slitting and rewinding speed	10-160m/min	10-160m/min	10-160m/min
Error correction accuracy	0.5mm	0.5mm	0.5mm
Total power	3kw	4kw	5kw
Weight	1900kw	2100kw	2300kw
Dimension	120019001270mm	120023001370mm	120025001370mm

Characteristic USE

This machine is used to cut all kinds of roll materials BOPP,PET,PE,CPP,PVC,Aluminum Foil,Paper and so on.

FEATURE

1. It is vertical slitting machine.

2. Independent microcomputer control screen, making easy operation.

3. Magnetic powder control for tension of unwind and rewind.

4. Auto metering with material running, auto photoelectric error correction for unwinding.

5. Equipped with side waste scrap air-blowing sending or reeling devices.

6. Dual-air swelling shaft reeling, smooth and level end face splitting.

7. Disc blade or razor knife accessories must be selected for splitting aluminum foil and paper.
