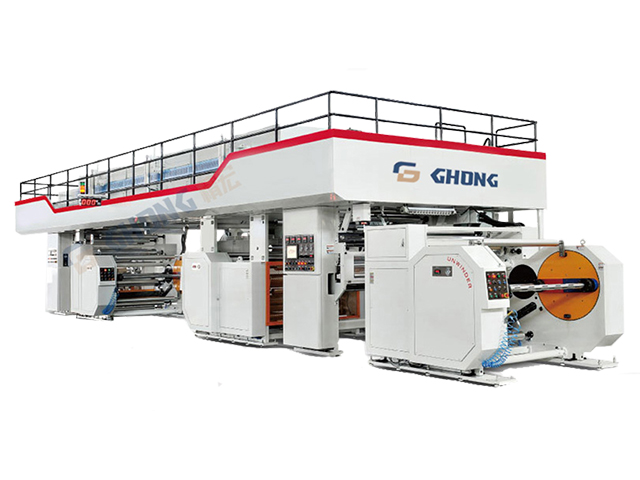

JHFH-B High Speed Dry Type Laminating Machine



JHFH-B High Speed Dry Type Laminating Machine

This machine is suitable for the double-layer or multiple-layer lamination of such roll film material as BOPP, PET, nylon, CPP, CPE, aluminum foil and paper, etc.

Inquiry Contact us

Product Description

This machine is suitable for the double-layer or multiple-layer lamination of such roll film material as BOPP, PET, nylon, CPP, CPE, aluminum foil and paper, etc.

MODEL	JHFH-B-600	JHFH-B-800	JHFH-B-1000
Laminating width	600mm	800mm	1000mm
Laminating layer	2 layer	2 layer	2 layer
Laminating speed	10-120m/min	10-120m/min	10-120m/min
Diameter of roll material	750mm	750mm	750mm
Oven temperature	120℃	120℃	120℃
Total power	58kw	64kw	70kw
Weight	7500kw	8200kw	8900kw
Dimension	96002400mm3300mm	96002650mm3300mm	96002850mm3300mm

Characteristic USE

This machine is suitable for the double-layer or multiple-layer lamination of such roll film material as BOPP, PET, nylon, CPP, CPE, aluminum foil and paper, etc.

FEATURE

1. Frequency conversing synchronic timing is adopted for main machine, making more stable operation

2. Two means of glue applying,anilox roll sizing and rubber roll gluing

3. Top air style oven open, initiative guiding roll in oven

4. 4-sect heating in drying tunnel, possible to control temperature by segments

5. Photoelectric error correction for the first unreeling.

6. Reeling and unreeling by tumbling dual-station mechanism, realizing auto material change without machine halt.

7. Oil warming system for composite reel, constant temperature control
